4.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 4.0Ah for use with the ARCC Bikes Intelligent Drive System. 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of 35min. Includes a 3-year Bosch-backed warranty.

6.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 6.0Ah for use with the ARCC Bikes Intelligent Drive System. 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of 55min. Includes a 3-year Bosch-backed warranty.

4.0Ah Bosch Battery

6.0Ah Bosch Battery

Spare Battery Holder

Carry a spare Bosch battery with ARCC's Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

Lockable Spare Battery Holder

Carry a spare Bosch battery with ARCC's Lockable Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

IDS Pod Lock

Lock your Bosch Battery to the ARCC Bikes IDS MK2 Pod with our CNC-machined Pod Lock. A barrel lock for the IDS Pod which will prevent anyone from removing the battery without a key. Supplied with 2 keys. Please note that you will need to send your bike back to ARCC in order for this lock to be fitted.

ARCC Brompton Bag Conversion

The ARCC Brompton Bag Conversion allows your existing bag to be attached to the ARCC Bike Intelligent Drive System Pod, while connecting the IDS to the Bosch battery within the bag. Bags are converted at ARCC Bikes by our technicians. Also compatible with ARCC Moulton TSR Electric bikes. *Bag not included.

Schwalbe Marathon Racer - Tanwall

35-349. 16x1/3. The Schwalbe Marathon Racer is the lightest marathon. This folding Tanwall tyre features both Raceguard protection as well as a LiteSkin sidewall. Just 245g each.

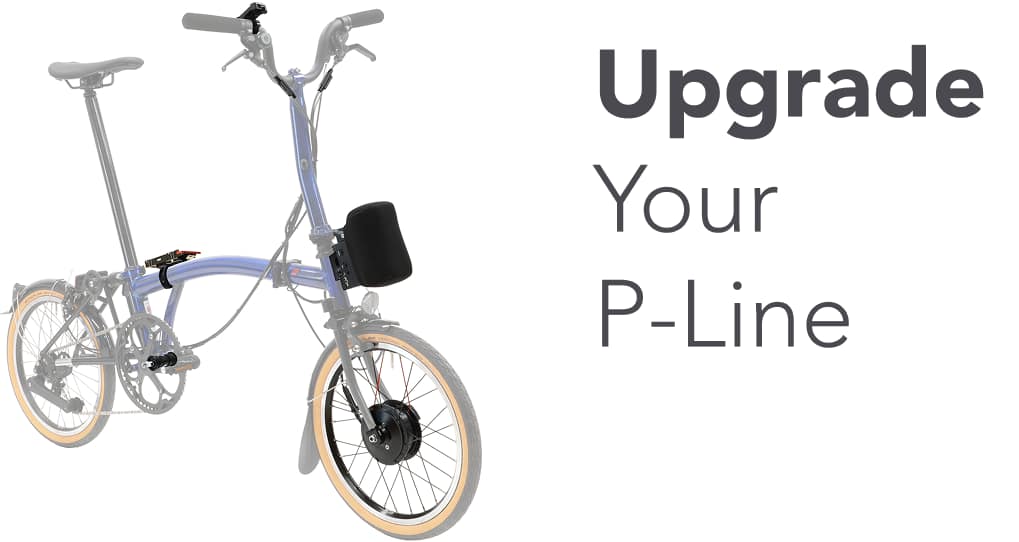

Upgrade Your P-Line

£0.00

Enhance your P Line with the ARCC Bikes Intelligent Drive System (IDS). Includes a Bosch 36V professional battery, 250W front hub motor, wireless Gen-3 IDS Remote Control, brake switches and a NCTE torque and cadence sensor. Has 6 power levels, Manual and Automatic modes, Launch Control and Auto Hill Assist. Range of between 30-50km dependant on battery fitted, riding style and terrain. Recharges in as little as 35min. Adds only 3.7kg to the overall bike weight. Bike remains foldable and compatible with most Brompton Bags. 5-year IDS and 3-year Bosch warranty. Collection and delivery of your Brompton included. Same Day Conversions available.

IDS Features
6 Levels of Power Assistance	Fine-tune the system to get the exact level of power assistance you prefer for the terrain and your riding style.
Manual Mode	Control your desired power level by pressing the plus or minus icons on the IDS remote controller. In all settings the power will increase when more pressure is applied to the pedals.
Automatic Mode	Set the minimum assist level while an in-built Inclinometer/Accelerometer recognises hills and gradients automatically increasing or decreasing the power delivered accordingly (Automatic Hill Assist). As with Manual Mode, power will increase when more pressure is applied to the pedals.
Launch Control	Provides up to 3 seconds of maximum power assistance for effortless getaways at busy junctions, traffic lights and hill starts.
Walk Assist	Provides walking pace power assistance should you desire to push your bike.
Free ARCC Control App	Available on iOS and Android devices. Includes all features of IDS Remote Controller. Turn-by-turn map navigation. Ride data. System monitoring. Battery status. Performance insights. System configuration and updates. No subscription or in-app purchases.

IDS Specification
IDS Pod	Manufactured at ARCC, CNC machined from Solid Billets of Peraluman 470 Aluminium Grade 5083/AIMg 4.5Mn, which are polished and anodised for weather protection. Laser engraved legends. Includes 3 USB-C Sockets, one of which has the capacity for fast charging of your phone and IDS Remote Controller on the go.
Battery	4.0Ah Bosch Battery; 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of as little as 35min. 6.0Ah Bosch Battery; 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of as little as 55min (as standard on ARCC Linton)* Range dependant riding style and terrain.
Battery Cover	Neoprene battery cover
Spare battery holder	Optional Extra* (As standard on ARCC Linton)
Gen-3 IDS Remote Control	Manage power levels, modes, switch off pod, control lights, indicators, and monitor IDS and controller battery status with our Gen-3 wireless and weatherproof remote controller. Made by ARCC Bikes in Cambridge from CNC-machined aluminium that has been anodised and laser engraved.
Remote control cradle	Handlebar mounted ergonomically for ease of use, made by ARCC Bikes in Cambridge from CNC-machined aluminium, that has been black anodised and laser engraved
Front hub	Brompton A/C/P/T-Line only: ARCC Aikema 250W 36V Brushless DC Front Hub Motor 28h All bikes: BAFANG 250W 36V Brushless DC Front Hub Motor 36h
Bottom bracket	NCTE Torque and Cadence Sensing Bottom Bracket. Delivers accurate torque and cadence data to the Pod and responds instantly to rider input.
Fork supports	Brompton A/C/P-Line / Moulton: Left and right CNC machined aluminium, black anodised and laser engraved. Brompton G-Line: Left and right CNC machined stainless steel, black finished and laser engraved.
Brake Ferrules	CNC machined aluminium, black anodised & laser engraved (mechanical brakes only)

Bike Specification
Weight	From 13.7kg
Wheel Size	16"
Fork	Carbon fork Titanium fork with a threaded headset
Frame	Titanium and Steel. Main frame; Precision drawn heat-treated steel tubing with hand brazing. Rear frame; Superlight Advance rear frame made from Titanium with a replaceable hanger
Frame Finish	Powder Coat
Headset	Semi integrated / low profile headset Brompton Superlight Headset
Front hub	(see IDS Specification)
Spokes	Stainless 14g x28 Front
Rims	Double Wall Rim 28h Black 16"
Tyres	Schwalbe Marathon Racer folding Tyre (Tan Wall) 16 x 1, 1/3 110 PSI MAX (Recommended 100 PSI) Schwalbe Marathon 16 x 1.35 110 PSI MAX* Schwalbe Marathon Plus 16 x 1.35 110 PSI MAX*
Tubes	Schrader Valve
Crank set	6061 forged aluminum crank with 50T chainring and integrated chainguard
Bottom bracket	(see IDS Specification)
Brake levers	Brompton
Brakes	Brompton Dual Pivot Calipers
Gear lever	Brompton 4 speed derailleur shifter Brompton 3 speed hub gear shifter (12-speed only)*
Cassette/Sprocket	11-13-15-18 Tooth
Chain/Belt	Chain
Pedals Components	Fixed right-hand and quick-release left-hand pedals
Seat post	Extended, Black (35")
Saddle	Brompton standard
Handlebar stem	Brompton Stem
Handlebar	Low* Mid High* (40mm stem increase)
Handlebar Grips	Superlight lock-on grips with precision ground foam adhered to ultra thin engineered core Ergo grips
Lighting/Reflectors	Front: Lezyne E-Bike Hecto StVZO E65 Rear: Lezyne E-Bike Super Bright StVZO E12
Seat Post Clamp	Machined aluminum seat clamp and rear frame clip in anodised matt black finish
Frame Size	One Size
Rear Hub Gearing	Brompton 4-Speed Brompton 12-Speed*
