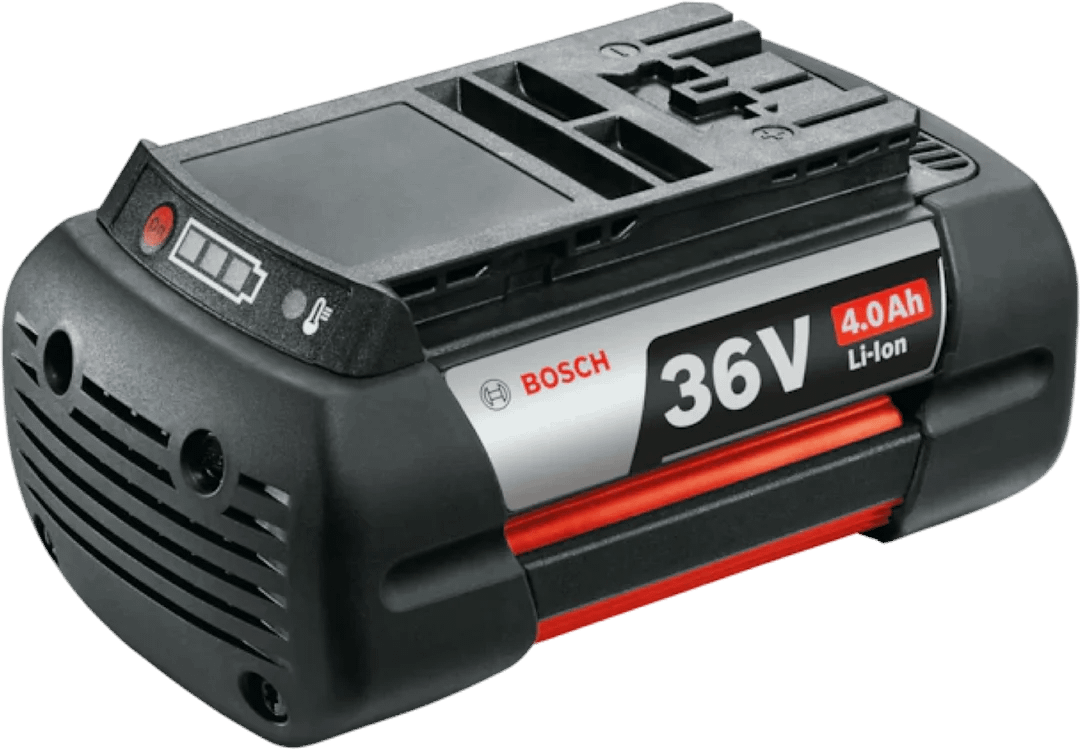

4.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 4.0Ah for use with the ARCC Bikes Intelligent Drive System. 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of 35min. Includes a 3-year Bosch-backed warranty.

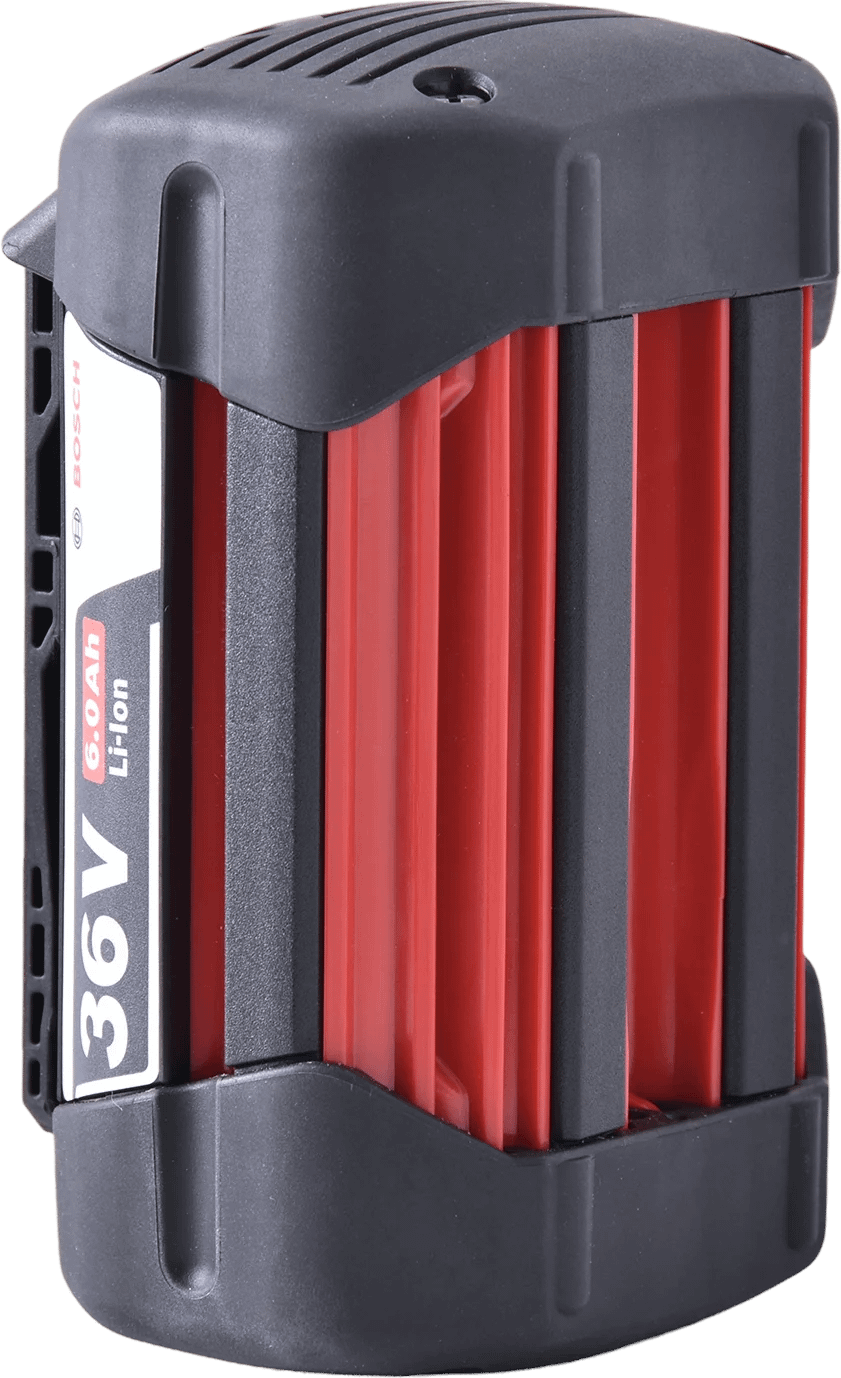

6.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 6.0Ah for use with the ARCC Bikes Intelligent Drive System. 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of 55min. Includes a 3-year Bosch-backed warranty.

4.0Ah Bosch Battery

6.0Ah Bosch Battery

Spare Battery Holder

Carry a spare Bosch battery with ARCC's Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

Lockable Spare Battery Holder

Carry a spare Bosch battery with ARCC's Lockable Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

IDS Pod Lock

Lock your Bosch Battery to the ARCC Bikes IDS MK2 Pod with our CNC-machined Pod Lock. A barrel lock for the IDS Pod which will prevent anyone from removing the battery without a key. Supplied with 2 keys. Please note that you will need to send your bike back to ARCC in order for this lock to be fitted.

SKS Full Bluemels Mudguards

20" SKS chromoplastic mudguards, 53mm wide U section for optimum tyre clearance. Stainless steel fittings. For use with Moulton Bicycles.

Vavert Sport Mudguards

20″ Vavert Sport Mudguards with reflective strip. Clip-on. For use with Moulton Bicycles.

Moulton Rear Luggage Carrier

Designed to support the Moulton Large Rear Touring Bag and other substantial loads. Manufactured from Reynolds 525 steel tubing. Max load 10kg. Compatibile with: TSR, SST, XTB, HALL SE.

Moulton Day Bag Carrier

Rear carrier perfectly sized for the Moulton Day Bag or similar compact loads. An excellent choice for commuters and leisure riders who want practical carrying capacity without compromising performance. Supplied with mounting plate for rear reflector (50 & 80mm bolt centres). Made from Reynolds Chromoly steel and finished in durable powder coating. Compatible with: TSR, SST, XTB, HALL SE.

ARCC Moulton Front Pannier Carrier

The ARCC Moulton TSR Front Pannier Carrier is ideal for everyday use and weekend rides. Hand-welded from seamless steel tube by ARCC in Cambridge. Jet Black powder coated. Designed to be used with the ARCC Bikes Intelligent Drive System (IDS). Max load 10kg. Compatible with: TSR, SST, XTB.

Moulton Day Bag

Crafted in England from traditional 18-ounce waxed cotton duck, this compact day bag combines classic utility with the enduring practicality required for everyday riding. Designed specifically for use with the Moulton Day Bag Carrier, the bag mounts securely to both the carrier and seat pillar using discreet Velcro straps. Capacity of 6L. Measurements (cm); L24xH31xW10.

Schwalbe Marathon

40-406. 20x1.50. Schwalbe Marathon. Modern and sporty tread design with excellent puncture resistance. Featuring GreenGuard protection along with a reflective strip. E-Bike Ready.

Schwalbe Marathon Plus

35-406. 20x1.35. The Schwalbe Marathon Plus is the brands most puncture resistant tyre. Featuring a 5mm thick SmartGuard layer, an 'anti-aging' sidewall as well as a reflective strip. E-Bike Ready.

Schwalbe Kojak Slick

35-406. 20x1.35. Fast, sporty, tread-less slick tyres. These Schwalbe Kojak tyres weigh just 334g each, and have RaceGuard protection along with reflective labels.

MKS Esprit EZY Superior Removable Pedals

Made by MKS Japan. EZY Superior system for easy removal without the need for any tools. 415g (pair)

Brooks B17 Leather Saddle - Black

Official Brooks Saddle. Durable vegetable tanned leather, shapes over time lasting comfort and breathability. Hand-made. Register your Leather Saddle on the Brooks Website within 3 months from the date of purchase to extend the standard 2-year Brooks-backed guarantee to 10-years total.

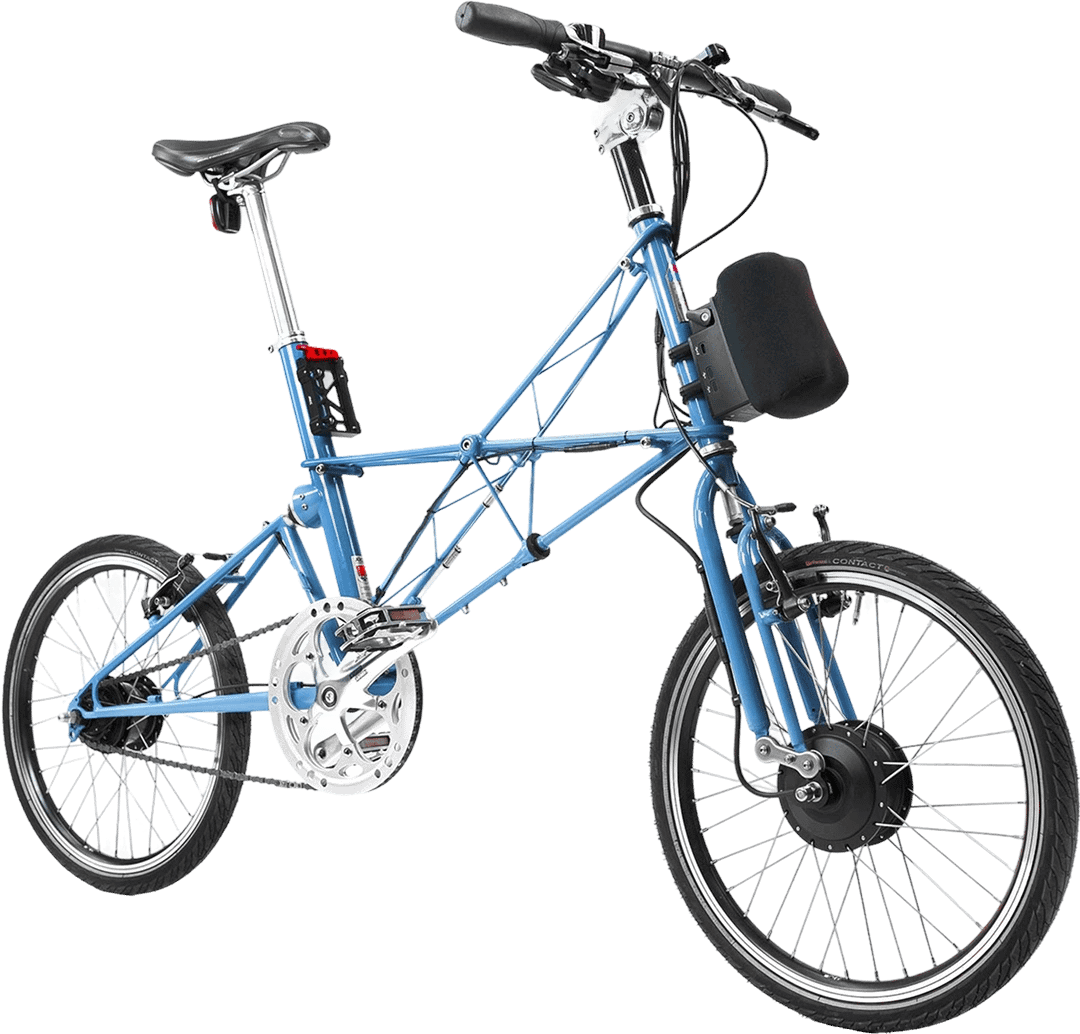

ARCC Moulton TSR Configurator

£0.00

Configure a Moulton TSR with ARCC Bikes Intelligent Drive System (IDS) and/or Gates Carbon Belt Drive. Choose from a range of gearing options and Moulton colours. IDS includes a Bosch 36V professional battery, 250W front hub motor, wireless Gen-3 IDS Remote Control, brake switches and a NCTE torque and cadence sensor. Has 6 power levels, Manual and Automatic modes, Launch
Control and Auto Hill Assist. Range of between 30-50km dependant on battery fitted, riding style and terrain. Recharges in as little as 35min. CNC-machined stainless steel ARCC Moulton Kingpin Hand Knob. 5-year frame, 5-year IDS and 3-year Bosch warranty included.

IDS Features
6 Levels of Power Assistance	Fine-tune the system to get the exact level of power assistance you prefer for the terrain and your riding style.
Manual Mode	Control your desired power level by pressing the plus or minus icons on the IDS remote controller. In all settings the power will increase when more pressure is applied to the pedals.
Automatic Mode	Set the minimum assist level while an in-built Inclinometer/Accelerometer recognises hills and gradients automatically increasing or decreasing the power delivered accordingly (Automatic Hill Assist). As with Manual Mode, power will increase when more pressure is applied to the pedals.
Launch Control	Provides up to 3 seconds of maximum power assistance for effortless getaways at busy junctions, traffic lights and hill starts.
Walk Assist	Provides walking pace power assistance should you desire to push your bike.
Free ARCC Control App	Available on iOS and Android devices. Includes all features of IDS Remote Controller. Turn-by-turn map navigation. Ride data. System monitoring. Battery status. Performance insights. System configuration and updates. No subscription or in-app purchases.

IDS Specification
IDS Pod	Manufactured at ARCC, CNC machined from Solid Billets of Peraluman 470 Aluminium Grade 5083/AIMg 4.5Mn, which are polished and anodised for weather protection. Laser engraved legends. Includes 3 USB-C Sockets, one of which has the capacity for fast charging of your phone and IDS Remote Controller on the go.
Battery	4.0Ah Bosch Battery; 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of as little as 35min. 6.0Ah Bosch Battery; 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of as little as 55min (as standard on ARCC Linton)* Range dependant riding style and terrain.
Battery Cover	Neoprene battery cover
Spare battery holder	Optional Extra* (As standard on ARCC Linton)
Gen-3 IDS Remote Control	Manage power levels, modes, switch off pod, control lights, indicators, and monitor IDS and controller battery status with our Gen-3 wireless and weatherproof remote controller. Made by ARCC Bikes in Cambridge from CNC-machined aluminium that has been anodised and laser engraved.
Remote control cradle	Handlebar mounted ergonomically for ease of use, made by ARCC Bikes in Cambridge from CNC-machined aluminium, that has been black anodised and laser engraved
Front hub	Brompton A/C/P/T-Line only: ARCC Aikema 250W 36V Brushless DC Front Hub Motor 28h All bikes: BAFANG 250W 36V Brushless DC Front Hub Motor 36h
Bottom bracket	NCTE Torque and Cadence Sensing Bottom Bracket. Delivers accurate torque and cadence data to the Pod and responds instantly to rider input.
Fork supports	Brompton A/C/P-Line / Moulton: Left and right CNC machined aluminium, black anodised and laser engraved. Brompton G-Line: Left and right CNC machined stainless steel, black finished and laser engraved.
Brake Ferrules	CNC machined aluminium, black anodised & laser engraved (mechanical brakes only)

Bike Specification
Weight	From 12.5kg (for electric see IDS Specification)*
Wheel Size	20"
Fork	Moulton Leading Link Front Suspension
Frame	Columbus Spirit and Reynolds 525 Chromoly steels. Hairpin construction. Fillet brazed by hand
Frame Finish	Powder Coat
Headset	1" Cartridge Headset
Front hub	Shimano 36h black (for electric see IDS Specification)*
Spokes	Stainless 14g x36 Front / x36 Rear
Rims	Double Wall Rim 36h 20"
Tyres	Schwalbe Marathon 20 x 1.5 100 PSI MAX (Recommended 70 PSI) Schwalbe Marathon Plus 20 x 1.35 100 PSI MAX* Schwalbe Kojak 20 x 1.35 95 PSI MAX*
Tubes	Schwalbe SV6 20x1.5 Presta Valve
Crank set	Chain Drive: ARCC TSR 1/8/11/14: Sturmey Archer 54T Double Bash Guard Alloy Square Taper (170mm Arm) ARCC TSR 9/22: Truvitiv 53/39t Square Taper (170mm Arm)* Belt Drive: ARCC TSR 1: Gates Carbon Drive CDN 60T S250 Square Taper (170mm Arm)* ARCC TSR 8/11/14: Gates Carbon Drive CDX 70T S250 Square Taper (170mm Arm)*
Bottom bracket	Non Electric: Thun Zumba Square Taper 119mm (for electric see IDS Specification)*
Brake levers	Flat Handlebar: Avid FR-5 Drop Handlebar: ARCC TSR 1: SRAM S500 Road Lever* ARSS TSR 8: Microshift SB-N100-L / SB-N080-R* ARCC TSR 11: Microshift SB-N100-L / SB-N110-R* ARCC TSR 22: Shimano ST-R7000 Double Mechanical 11-Speed STI Levers*
Brakes	Flat Handlebar: Avid Single Digit V Brakes Drop Handlebar: Avid Single Digit Mini V Brakes
Gear lever	Flat Handlebar: ARCC TSR 8: Shimano 8 Speed easy fire shifter* ARCC TSR 9: SRAM X9 Shifter* ARCC TSR 11: Shimano 11 Speed easy fire shifter* ARCC TSR 14:Rohloff Twist Shifter* Drop Handlebar: ARCC TSR 8: MicroShift 8 Speed STI Shifter* ARCC TSR 11: MicroShift 11 Speed STI Shifter* ARCC TSR 22: Shimano 105 STI Shifter*
Cassette/Sprocket	Chain Drive: ARCC TSR 1/8/11: Shimano 18T ARCC TSR 9: SRAM X9 Cassette 11/28* ARCC TSR 14: 13T* ARCC TSR 22: Shimano 105 Cassette 11-28* Belt Drive: ARCC TSR 1: Gates 26T* ARCC TSR 8/11: Gates 24T* ARCC TSR 14: Gates 19T*
Chain/Belt	Chain Drive: ARCC TSR 1/8/11/14: SRAM PC850 chain ARCC TSR 9: SRAM X9 chain* ARCC TSR 22: Shimano 105 chain* Belt Drive: ARCC TSR 1/14: Gates Carbon Belt Drive CDN 125T Belt* ARCC TSR 8/11: Gates Carbon Belt Drive CDN 130T Belt*
Pedals	VP607 Alloy/Rubber Tread Silver
Seat post	Alloy 31.8 400mm
Saddle	Selle Royal Viper Brooks B17* Madison Roam*
Handlebar stem	Uno adjustable (Silver)
Handlebar	Straight Bar Length 54.5cm. Aluminium Drop Bar Length 44cm. Aluminium*
Handlebar Grips	Rubber Moulded 130mm
Lighting/Reflectors	Front / Rear Reflectors Lights (IDS only): Front: Lezyne E-Bike Hecto StVZO E65 Rear: Lezyne E-Bike Super Bright StVZO E12*
Seat Post Clamp	Alloy Seat Clamp 34.9 Silver
Frame Size	Suitable for inside leg 27-36″
Rear Hub Gearing	Chain Drive: ARCC TSR 1: Single Speed Shimano (Gear Inches = 56.0, Meters of Development = 4.5) ARCC TSR 8: Shimano Alfine 8 (Gear Inches = 29.7-90.8, Meters of Development = 2.4-7.2)* ARCC TSR 9: SRAM X9 (Gear Inches = 31.5-91.7, Meters of Development = 2.5-7.3)* ARCC TSR 11: Shimano Alfine 11 (Gear Inches = 29.7-120.4, Meters of Development = 2.4-9.6)* ARCC TSR 14: Rohloff Speedhub 14 (Gear Inches = 21.7-114.0, Meters of Development = 1.7-9.1)* ARCC TSR 22: Shimano 105 (Gear Inches = 22.8-90.0, Meters of Development1.8-7.2)* Belt Drive: ARCC TSR 1: Single Speed Shimano (Gear Inches = 43, Meters of Development = 3.4)* ARCC TSR 8: Shimano Alfine 8 (Gear Inches = 29-88, Meters of Development = 2.3-7.0)* ARCC TSR 11: Shimano Alfine 11 (Gear Inches = 29-117, Meters of Development = 2.3-9.3)* ARCC TSR 14: Rohloff Speedhub 14 (Gear Inches = 19-101, Meters of Development = 1.5-8.1)*
