Name: ARCC Rosemont Electric
SKU: 36859
Price: 3388.00 GBP
Availability: InStock

ARCC Abington

8-Speed. Jet Black. Gates Belt Drive. Weight 12.1kg

£1,449.00

ARCC Abington, hand-welded in Cambridge with a 4130 chromoly steel frame (size XL), ARCC custom forks, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive and Magura Hydraulic Brakes. Weight 12.1kg. 7-year frame warranty.

View Product Build Your Bike

Add To Cart

ARCC Abington Electric

8-Speed. Chromacoat Blue Silver. Gates Belt Drive. Weight 16kg

£4,078.00

Battery

4AH 6AH

ARCC Abington Electric, hand-welded in Cambridge with custom-drawn Reynolds Technology 631 steel frame (size S/M), Chromacoat finish, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive, Shimano disc brakes and the ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging. 16kg with battery. 7-year frame, 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

ARCC Rosemont

8-Speed. Turquoise. Gates Belt Drive. Weight 12.6kg

£1,449.00

ARCC Rosemont, hand-welded in Cambridge with a custom-drawn Reynolds Technology 631 steel step-through frame, ARCC custom forks, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive and Tektro hydraulic disc brakes. Weight 12.6kg. 7-year frame warranty.

View Product Build Your Bike

Add To Cart

ARCC Abington

14-Speed Rohloff. Orange. Gates Belt Drive. Weight 12.1kg

£2,899.00

ARCC Abington, hand-welded in Cambridge with a custom-drawn Reynolds Technology 631 steel frame (size S/M), ARCC custom forks, 14-speed Rohloff Speedhub, Gates Carbon Belt Drive and Shimano disc brakes. Weight 12.1kg. 7-year frame warranty.

View Product Build Your Bike

Add To Cart

ARCC Abington

8-Speed. Orange. Gates Belt Drive. Weight 12.1kg

£1,449.00

ARCC Abington, hand-welded in Cambridge with a custom-drawn Reynolds Technology 631 steel frame (size S/M), ARCC custom forks, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive and Shimano disc brakes. Weight 12.1kg. 7-year frame warranty.

View Product Build Your Bike

Add To Cart

ARCC Abington

8-Speed. Pebble Grey. Gates Belt Drive. Weight 12.1kg

£1,449.00

ARCC Abington, hand-welded in Cambridge with a custom-drawn Reynolds Technology 631 steel frame (size M/L), ARCC custom forks, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive, Magura hydraulic disc brakes and SKS Mudguards. Weight 12.1kg. 7-year frame warranty.

View Product Build Your Bike

Add To Cart

ARCC Abington Electric

8-Speed. Chromacoat Purple Green. Gates Belt Drive. Weight 16kg

£4,078.00

Battery

4AH 6AH

ARCC Abington Electric, hand-welded in Cambridge with custom-drawn Reynolds Technology 631 steel frame (size S/M), Chromacoat finish, 8-speed Shimano Alfine hub gearing, Gates Carbon Belt Drive, Shimano disc brakes and the ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging. 16kg with battery. 7-year frame, 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

IDS Features
6 Levels of Power Assistance	Fine-tune the system to get the exact level of power assistance you prefer for the terrain and your riding style.
Manual Mode	Control your desired power level by pressing the plus or minus icons on the IDS remote controller. In all settings the power will increase when more pressure is applied to the pedals.
Automatic Mode	Set the minimum assist level while an in-built Inclinometer/Accelerometer recognises hills and gradients automatically increasing or decreasing the power delivered accordingly (Automatic Hill Assist). As with Manual Mode, power will increase when more pressure is applied to the pedals.
Launch Control	Provides up to 3 seconds of maximum power assistance for effortless getaways at busy junctions, traffic lights and hill starts.
Walk Assist	Provides walking pace power assistance should you desire to push your bike.
Free ARCC Control App	Available on iOS and Android devices. Includes all features of IDS Remote Controller. Turn-by-turn map navigation. Ride data. System monitoring. Battery status. Performance insights. System configuration and updates. No subscription or in-app purchases.

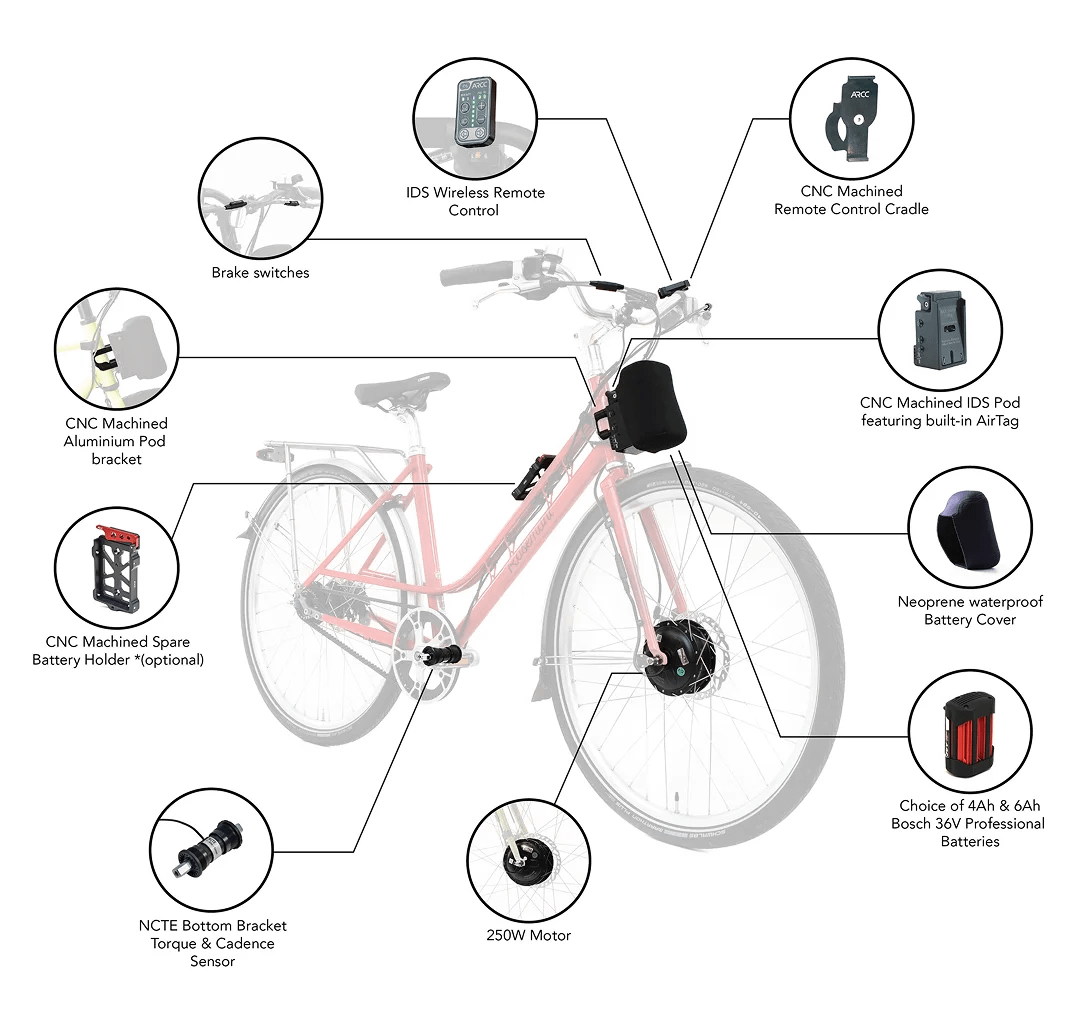

IDS Specification
IDS Pod	Manufactured at ARCC, CNC machined from Solid Billets of Peraluman 470 Aluminium Grade 5083/AIMg 4.5Mn, which are polished and anodised for weather protection. Laser engraved legends. Includes 3 USB-C Sockets, one of which has the capacity for fast charging of your phone and IDS Remote Controller on the go.

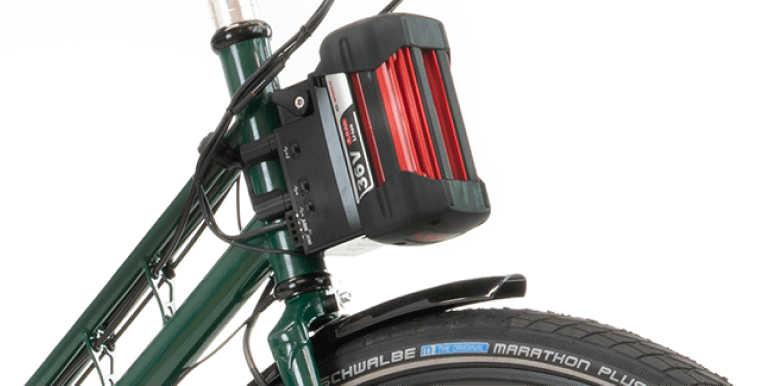

Battery	4.0Ah Bosch Battery; 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of as little as 35min. 6.0Ah Bosch Battery; 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of as little as 55min (as standard on ARCC Linton)* Range dependant riding style and terrain.
Battery Cover	Neoprene battery cover
Spare battery holder	Optional Extra* (As standard on ARCC Linton)

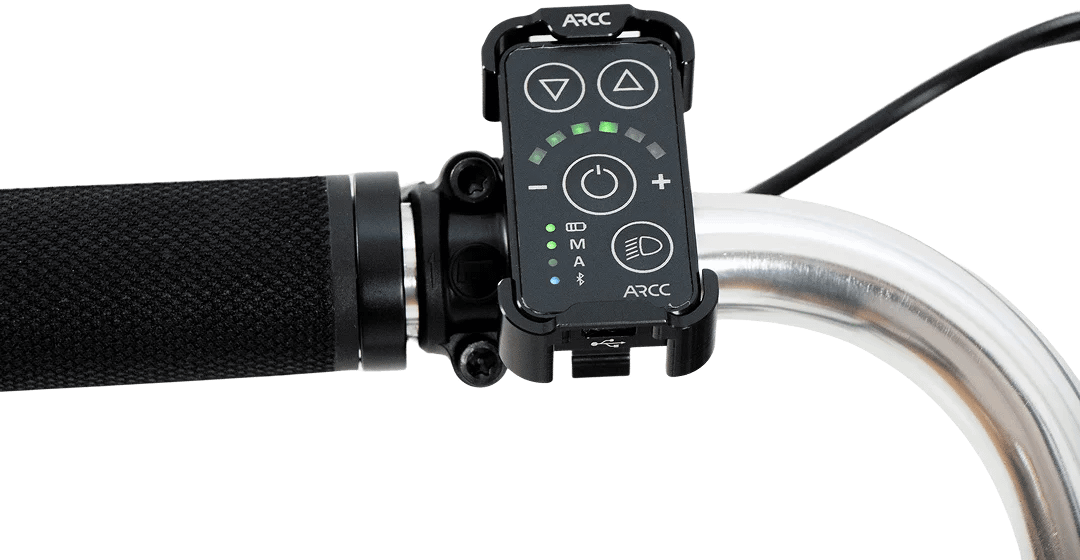

Gen-3 IDS Remote Control	Manage power levels, modes, switch off pod, control lights, indicators, and monitor IDS and controller battery status with our Gen-3 wireless and weatherproof remote controller. Made by ARCC Bikes in Cambridge from CNC-machined aluminium that has been anodised and laser engraved.
Remote control cradle	Handlebar mounted ergonomically for ease of use, made by ARCC Bikes in Cambridge from CNC-machined aluminium, that has been black anodised and laser engraved
Front hub	Brompton A/C/P/T-Line only: ARCC Aikema 250W 36V Brushless DC Front Hub Motor 28h All bikes: BAFANG 250W 36V Brushless DC Front Hub Motor 36h
Bottom bracket	NCTE Torque and Cadence Sensing Bottom Bracket. Delivers accurate torque and cadence data to the Pod and responds instantly to rider input.
Fork supports	Brompton A/C/P-Line / Moulton: Left and right CNC machined aluminium, black anodised and laser engraved. Brompton G-Line: Left and right CNC machined stainless steel, black finished and laser engraved.
Brake Ferrules	CNC machined aluminium, black anodised & laser engraved (mechanical brakes only)

Bike Specification
Weight	From 11kg (for electric see IDS Specification)*
Wheel Size	650B – 27.5"
Fork	ARCC Custom Forks
Frame	4130 Chromoly Steel Tube
Frame Finish	Powder Coat
Headset	1-1/8” Cartridge Headset
Front hub	Shimano 36h black (for electric see IDS Specification)*
Spokes	Stainless 14g x36 Front / x36 Rear
Rims	MACH1 ER20 Double Wall Rim 36h Silver or Black 650D/27.5"
Tyres	Schwalbe 27.5/650B Marathon Plus 95 PSI MAX (Recommended 80 PSI)
Tubes	Schwalbe SV12 27.5/650B Presta Valve
Crank set	1/8/11 Speed: Gates Carbon Drive CDN 55T S250 Square Taper (170mm Arm) 14 Speed: Gates Carbon Drive CDX 70T S250 Square Taper (170mm Arm)*
Bottom bracket	Thun Zumba Square Taper 119mm (for electric see IDS Specification)*
Brake levers	Shimano Mechanical BL-R550L Magura Hydraulic MT4E
Brakes	Shimano Mechanical Disc Brakes: Front: Shimano 160mm Rotor Rear: Shimano 140mm Rotor (Rohloff 160mm Rotor) Magura Hydraulic MT4 Single Pot Disc Brakes: Front: Magura 160mm Rotor Rear: Magura 140mm Rear Rotor (Rohloff 160mm Rotor)
Gear lever	8 Speed: Shimano 8 Speed easy fire shifter* 11 Speed: Shimano 11 Speed easy fire shifter* 14 Speed:Rohloff Twist Shifter*
Cassette/Sprocket	1/8/11 Speed: Gates Carbon Drive CDN 22T Sprocket 14 Speed:Gates Carbon Drive CDX 19T Sprocket*

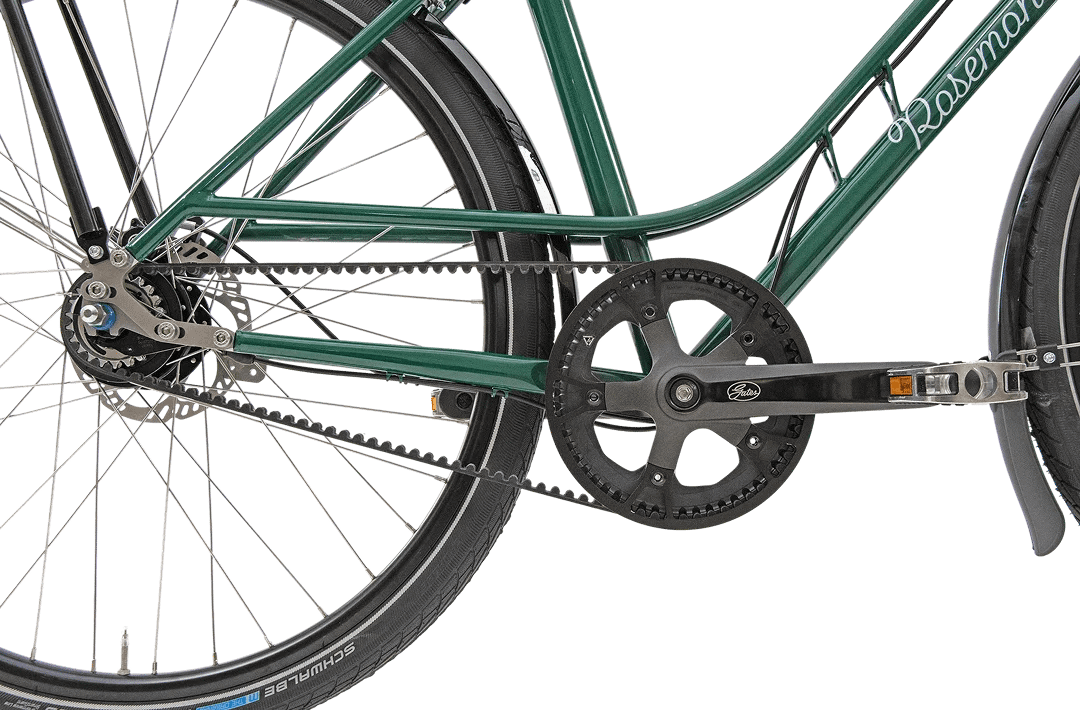

Belt	8/11 Speed: Gates Carbon Drive CDN 118T Belt 14 Speed:Gates Carbon Drive CDX 125T Belt*
Pedals	VP607 Alloy/Rubber Tread Silver
Seat post	Alloy 27.2mm 400mm Black
Saddle	Madison Roam Brooks C19 Cambium Saddle* Brooks B17 Black Leather Saddle*
Handlebar stem	A-Head Type Stem (6 Degree) 80mm
Handlebar	Alloy North Style Riser 630mm Silver
Handlebar Grips	Ergo Grips 130mm
Lighting/Reflectors	Front / Rear Reflectors Lights (IDS only): Front: Lezyne E-Bike Hecto StVZO E65 Rear: Lezyne E-Bike Super Bright StVZO E12*
Seat Post Clamp	Alloy Seat Clamp 34.9mm Black
Frame Size	Small-Medium (160-178cm)

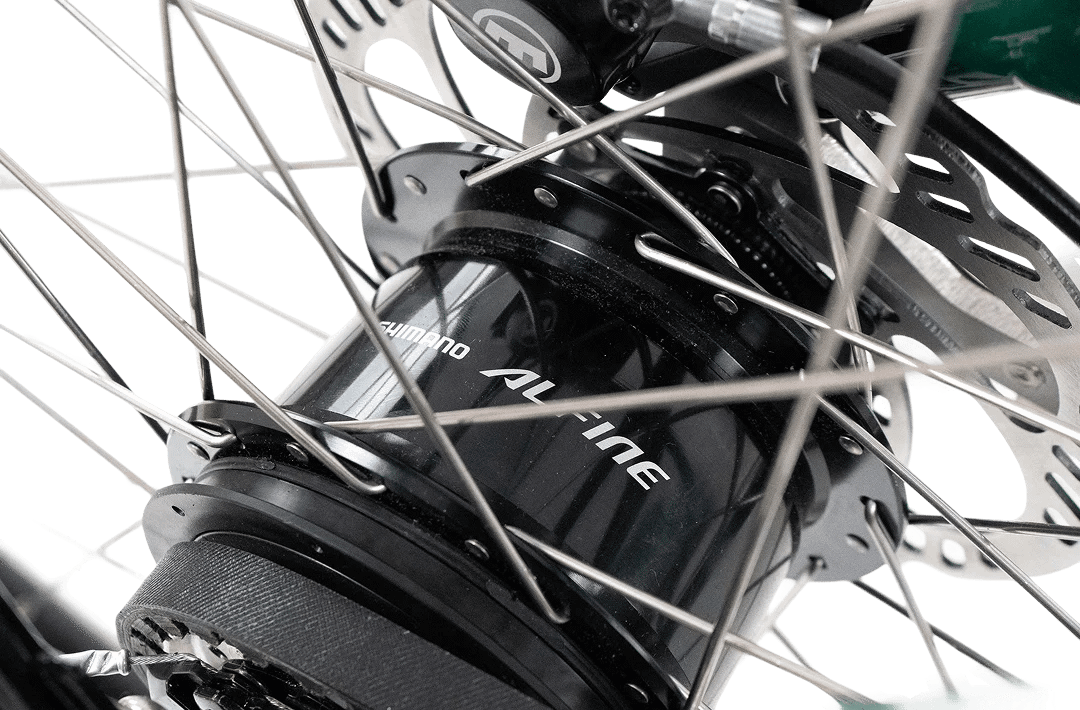

Rear Hub Gearing	Single Speed: Single Speed Shimano (Gear Inches = 65, Meters of Development = 5.2) 8 Speed: Shimano Alfine 8 (Gear Inches = 34-105, Meters of Development = 2.8-8.4)* 11 Speed: Shimano Alfine 11 (Gear Inches = 34-140, Meters of Development = 2.8-11.1)* 14 Speed: Rohloff Speedhub 14 (Gear Inches = 27-141, Meters of Development = 2.1-11.2)*

Size	US	Bust	Waist	Low Hip
XS	2	32	24 - 25	33 - 34
S	4	26 - 27	34 - 35	35 - 26
M	6	28 - 29	36 - 37	38 - 40
L	8	30 - 31	38 - 29	42 - 44
XL	10	32 - 33	40 - 41	45 - 47
XXL	12	34 - 35	42 - 43	48 - 50

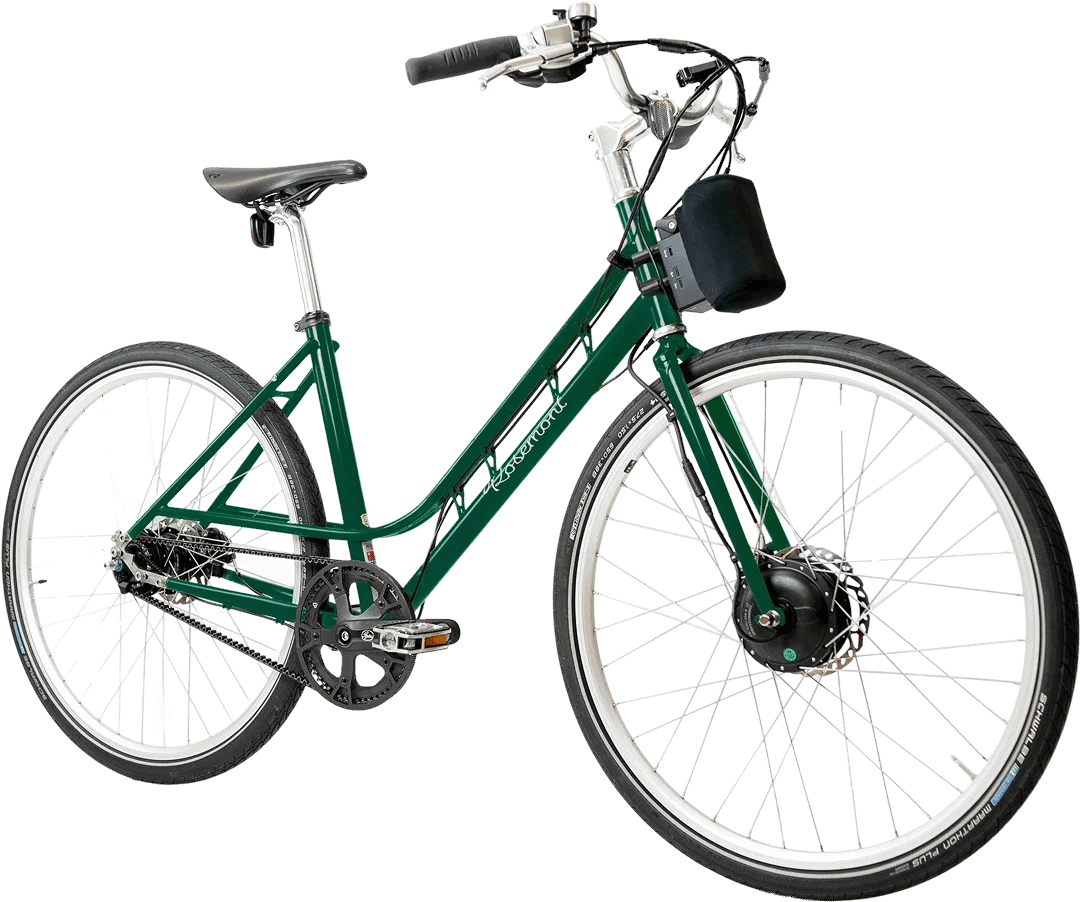

ARCC Rosemont Electric

4AH

6AH

Looking for something more individual?
