Name: ARCC Electric Converted Brompton G-Line
SKU: 36775
Price: 5318.00 GBP
Availability: InStock

ARCC Electric Converted Brompton G-Line

8-Speed. Forest Green. Weight 17.4kg*

£5,318.00

Battery

4AH 6AH

ARCC AG Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags. 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

*18.7kg with battery.

ARCC Electric Converted Brompton C-Line

12-Speed. Black. Weight 14.4kg*

£3,548.00

Battery

4AH 6AH

ARCC AC Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags.

View Product Build Your Bike

Add To Cart

*15.7kg with battery.

ARCC Electric Converted Brompton C-Line

4-Speed. Dune Sand. Weight 14.4kg*.

£3,348.00

Battery

4AH 6AH

ARCC AC Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags. 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

*15.7kg with battery.

ARCC Electric Converted Brompton G-Line

14-Speed Rohloff. Gates Belt Drive. Adventure Orange. Weight 18.9kg*

£7,598.00

Battery

4AH 6AH

ARCC AG Brompton with ARCC Bikes Intelligent Drive System with a 14-Speed Rohloff Speedhub and Gates Belt Drive. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags. 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

*20.2kg with battery.

ARCC Electric Converted Brompton T-Line

4-Speed. Blasted Titanium. Weight 10.3kg*

£6,989.00

Battery

4AH 6AH

ARCC AT Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags. 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

*11.6kg with battery.

ARCC Electric Converted Brompton P-Line

12-Speed. Midnight Black Metallic. Weight 12.9kg*

£4,598.00

Battery

4AH 6AH

ARCC AP Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags. 5-year IDS and 3-year Bosch-backed warranty.

View Product Build Your Bike

Add To Cart

*14.2kg with battery.

ARCC Electric Converted Brompton C-Line

6-Speed. Black Lacquer. Weight 14.4kg*.

£3,623.00

Battery

4AH 6AH

ARCC AC Brompton with ARCC Bikes Intelligent Drive System. Features a 250W motor, Bosch battery, 6 power levels, Manual & Auto modes, Launch Control and Auto Hill Assist. 30–50km range, 35min fast charging, folds with battery attached, compatible with most Brompton bags.

View Product Build Your Bike

Add To Cart

*15.7kg with battery.

IDS Features
6 Levels of Power Assistance	Fine-tune the system to get the exact level of power assistance you prefer for the terrain and your riding style.
Manual Mode	Control your desired power level by pressing the plus or minus icons on the IDS remote controller. In all settings the power will increase when more pressure is applied to the pedals.
Automatic Mode	Set the minimum assist level while an in-built Inclinometer/Accelerometer recognises hills and gradients automatically increasing or decreasing the power delivered accordingly (Automatic Hill Assist). As with Manual Mode, power will increase when more pressure is applied to the pedals.
Launch Control	Provides up to 3 seconds of maximum power assistance for effortless getaways at busy junctions, traffic lights and hill starts.
Walk Assist	Provides walking pace power assistance should you desire to push your bike.
Free ARCC Control App	Available on iOS and Android devices. Includes all features of IDS Remote Controller. Turn-by-turn map navigation. Ride data. System monitoring. Battery status. Performance insights. System configuration and updates. No subscription or in-app purchases.

IDS Specification
IDS Pod	Manufactured at ARCC, CNC machined from Solid Billets of Peraluman 470 Aluminium Grade 5083/AIMg 4.5Mn, which are polished and anodised for weather protection. Laser engraved legends. Includes 3 USB-C Sockets, one of which has the capacity for fast charging of your phone and IDS Remote Controller on the go.

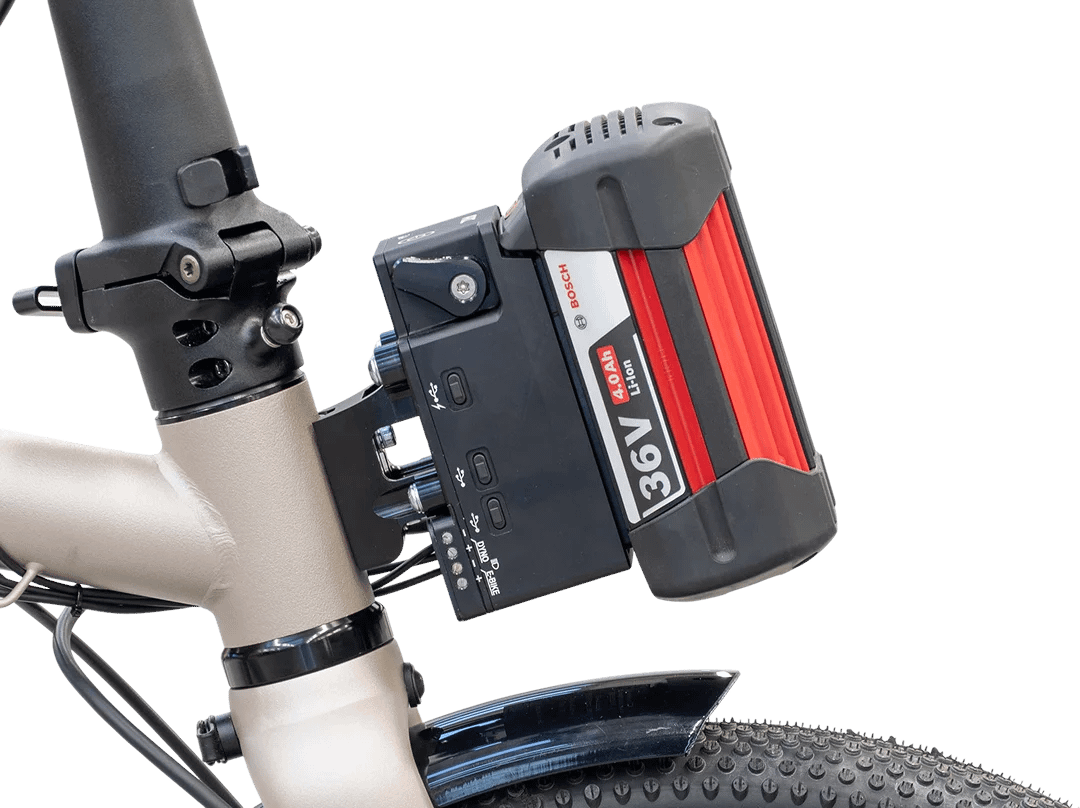

Battery	4.0Ah Bosch Battery; 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of as little as 35min. 6.0Ah Bosch Battery; 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of as little as 55min (as standard on ARCC Linton)* Range dependant riding style and terrain.
Battery Cover	Neoprene battery cover
Spare battery holder	Optional Extra* (As standard on ARCC Linton)
Gen-3 IDS Remote Control	Manage power levels, modes, switch off pod, control lights, indicators, and monitor IDS and controller battery status with our Gen-3 wireless and weatherproof remote controller. Made by ARCC Bikes in Cambridge from CNC-machined aluminium that has been anodised and laser engraved.
Remote control cradle	Handlebar mounted ergonomically for ease of use, made by ARCC Bikes in Cambridge from CNC-machined aluminium, that has been black anodised and laser engraved
Front hub	Brompton A/C/P/T-Line only: ARCC Aikema 250W 36V Brushless DC Front Hub Motor 28h All bikes: BAFANG 250W 36V Brushless DC Front Hub Motor 36h
Bottom bracket	NCTE Torque and Cadence Sensing Bottom Bracket. Delivers accurate torque and cadence data to the Pod and responds instantly to rider input.
Fork supports	Brompton A/C/P-Line / Moulton: Left and right CNC machined aluminium, black anodised and laser engraved. Brompton G-Line: Left and right CNC machined stainless steel, black finished and laser engraved.
Brake Ferrules	CNC machined aluminium, black anodised & laser engraved (mechanical brakes only)

Bike Specification
Weight	From 18.7kg
Wheel Size	20"
Fork	Steel
Frame	Hand-Brazed Steel Main Frame
Frame Finish	Textured Powder Coat
Headset	Brompton Headset
Front hub	Brompton Front Hub (for electric see IDS Specification)*
Spokes	Stainless x36 Front / x32 Rear (Alfine 8) x36 Rear (Alfine 11 & Rohloff 14)
Rims	Double Wall Rim 36h Black 20"
Tyres	Schwalbe G-One All Round 54-406. Tan wall
Tubes	20" Presta Valve
Crank set	Gates S250 Square Taper (170mm Arm)
Bottom bracket	Thun Zumba Square Taper (for electric see IDS Specification)*
Brake levers	Tektro Hydraulic
Brakes	Brompton Dual Pivot Calipers
Gear lever	Front: Tektro Hydraulic Disc Brakes 160mm Rotor Rear: Tektro Hydraulic 140mm Rotor (chain drive Alfine 8/11) / 160mm Rotor
Cassette/Sprocket	Chain Drive: 20T 3-Lobe Sprocket (for belt drive see Gates Specification)
Chain/Belt	YBN (for belt drive see Gates Specification)
Pedals Components	Wide Platform Quick Release
Seat post	Small Standard Black* Medium Extended Black Large Telescopic Black*
Saddle	Superlight
Handlebar stem	Brompton
Handlebar	Brompton wide (Low Riser)
Handlebar Grips	Ergonomic Grips 130mm
Lighting/Reflectors	Front / Rear Reflectors Lights (IDS only): Front: Lezyne E-Bike Hecto StVZO E65 Rear: Lezyne E-Bike Super Bright StVZO E12*
Seat Post Clamp	G-Line Aluminium
Frame Size	Small (152-168cm)* Medium (168-183cm) Large (183-198cm)*
Rear Hub Gearing	Chain Drive: 8 Speed: Shimano Alfine 8 (Gear Inches = 28-87, Meters of Development = 2.3-6.9) 11 Speed: Shimano Alfine 11 (Gear Inches = 28-115, Meters of Development = 2.3-9.2) 14 Speed: Rohloff Speedhub 14 (Gear Inches = 21-112, Meters of Development = 1.7-9.0) Belt Drive: 8 Speed: Shimano Alfine 8 (Gear Inches = 26-80, Meters of Development = 2.1-6.4) 11 Speed: Shimano Alfine 11 (Gear Inches = 24-98, Meters of Development = 1.9-7.8) 14 Speed: Rohloff Speedhub 14 (Gear Inches = 18-97, Meters of Development = 1.5-7.7)
Crank set	Gates Carbon Drive S250 Square Taper (170mm Arm) 60T / 63T (Rohloff)
Cassette/Sprocket	Alfine 8: 24T CDN Alfine 11: 26T CDN Rohloff 14: 19T CDX
Chain/Belt	Gates Carbon Belt Drive 125T CDX
Dropouts	ARCC custom made from CNC machined 316 stainless steel with black coating.
Frame support plate	ARCC custom made from CNC machined 316 stainless steel with black coating and engraving.
Tensioner spring boss	ARCC custom made from CNC machined 316 stainless steel with black coating.
Jockey wheels / spacers	ARCC custom made from CNC machined Nylatron (Nylon 6).

Size	US	Bust	Waist	Low Hip
XS	2	32	24 - 25	33 - 34
S	4	26 - 27	34 - 35	35 - 26
M	6	28 - 29	36 - 37	38 - 40
L	8	30 - 31	38 - 29	42 - 44
XL	10	32 - 33	40 - 41	45 - 47
XXL	12	34 - 35	42 - 43	48 - 50

ARCC Electric Converted Brompton G-Line

4AH

6AH
