4.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 4.0Ah for use with the ARCC Bikes Intelligent Drive System. 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of 35min. Includes a 3-year Bosch-backed warranty.

6.0Ah Bosch Battery

Bosch Battery Pack Pro GBA 36V 6.0Ah for use with the ARCC Bikes Intelligent Drive System. 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of 55min. Includes a 3-year Bosch-backed warranty.

4.0Ah Bosch Battery

6.0Ah Bosch Battery

Spare Battery Holder

Carry a spare Bosch battery with ARCC's Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

Lockable Spare Battery Holder

Carry a spare Bosch battery with ARCC's Lockable Spare Battery Holder. Attaches directly to your bike frames bottle cage bosses. Made from CNC-machined, anodised and laser engraved aluminium.

IDS Pod Lock

Lock your Bosch Battery to the ARCC Bikes IDS MK2 Pod with our CNC-machined Pod Lock. A barrel lock for the IDS Pod which will prevent anyone from removing the battery without a key. Supplied with 2 keys. Please note that you will need to send your bike back to ARCC in order for this lock to be fitted.

SKS Commuter Mudguards with Spoiler - Sliver

SKS Commuter Mudguards in silver. A durable, full-length mudguard set designed for dependable year-round protection. Compatible with ARCC Abington and ARCC Rosemont.

SKS Commuter Mudguards with Spoiler - Black

SKS Commuter Mudguards in black. A durable, full-length mudguard set designed for dependable year-round protection. For use with ARCC Abington and ARCC Rosemont.

ARCC Rear Rack -Silver

Rear rack compatible with ARCC Abington and ARCC Rosemont bikes. Hand-welded from 316 stainless steel by ARCC in Cambridge. Max Load 10kg. Includes fixing kit.

ARCC Rear Rack - Black

Rear rack compatible with ARCC Abington and ARCC Rosemont bikes. Hand-welded from 316 stainless steel by ARCC in Cambridge. Jet Black powder coated. Max Load 10kg. Includes fixing kit.

ARCC Heavy Duty Rear Rack - Black

Heavy duty rear rack for Abington and Rosemont. Ideal for child seats and everyday use. Hand-welded from 4130 Chromoly Steel by ARCC in Cambridge. Jet Black powder coated. Max load 27kg. Includes fixing kit.

ARCC Bike Kickstand

Kickstand for use with the ARCC Abington and Rosemont. Includes kickstand and screws. 24-29" Adjustable.

Brooks B17 Leather Saddle - Black

Official Brooks Saddle. Durable vegetable tanned leather, shapes over time lasting comfort and breathability. Hand-made. Register your Leather Saddle on the Brooks Website within 3 months from the date of purchase to extend the standard 2-year Brooks-backed guarantee to 10-years total.

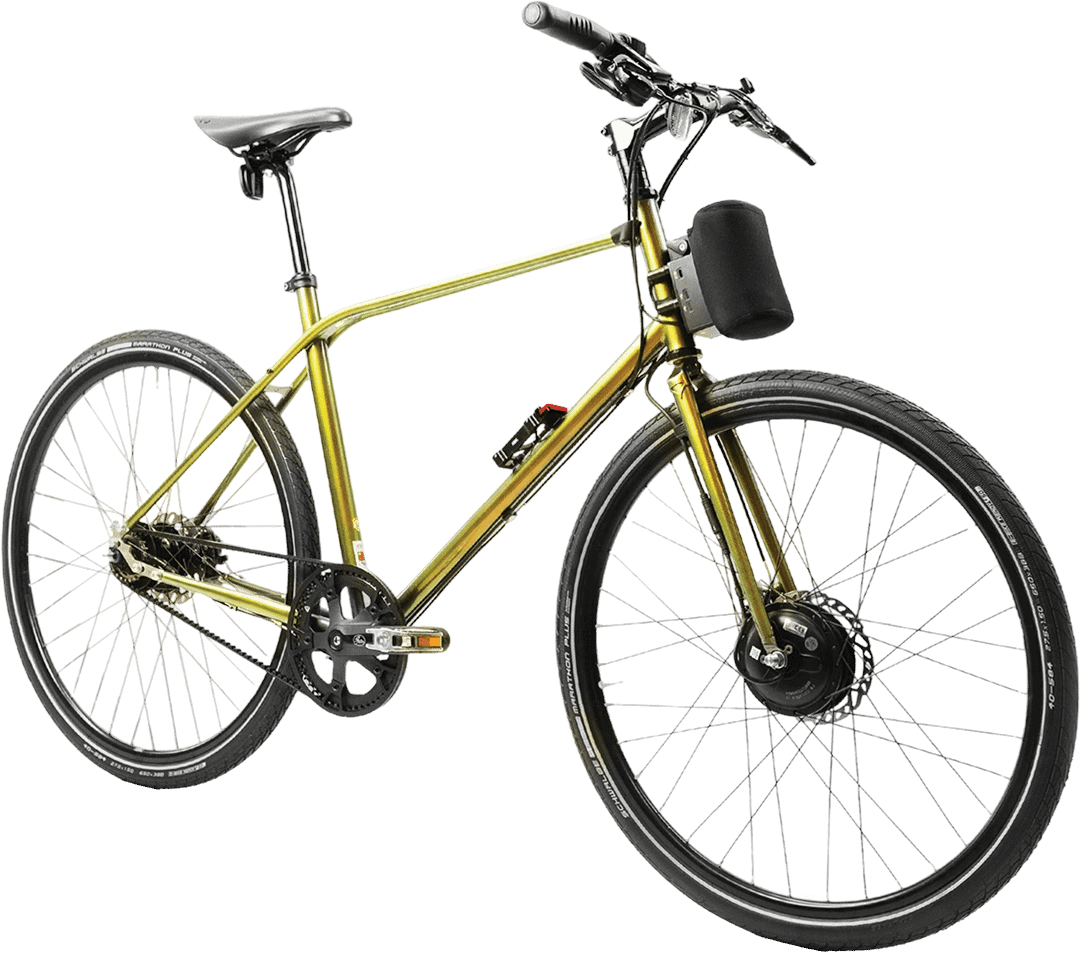

ARCC Abington Electric Configurator

£0.00

Configure an ARCC Abington Electric, made in Cambridge, modern commuter bicycle with hand-welded 4130 chromoly steel frame, ARCC Custom forks, range of hub gearing options, 12 powder coated frame colours or your preferred RAL colour, and accessories. Integrated with ARCC Bikes Intelligent Drive System (IDS). Includes a Bosch 36V professional battery, 250W front hub motor,wireless Gen-3 IDS Remote Control, brake switches and a NCTE torque and cadence sensor. Has 6 power levels, Manual and Automatic modes, Launch Control and Auto Hill Assist. Range of between 30-50km dependant on battery fitted, riding style and terrain. Recharges in as little as 35min. 7-year frame, 5-year IDS and 3-year battery warranty included.

IDS Features
6 Levels of Power Assistance	Fine-tune the system to get the exact level of power assistance you prefer for the terrain and your riding style.
Manual Mode	Control your desired power level by pressing the plus or minus icons on the IDS remote controller. In all settings the power will increase when more pressure is applied to the pedals.
Automatic Mode	Set the minimum assist level while an in-built Inclinometer/Accelerometer recognises hills and gradients automatically increasing or decreasing the power delivered accordingly (Automatic Hill Assist). As with Manual Mode, power will increase when more pressure is applied to the pedals.
Launch Control	Provides up to 3 seconds of maximum power assistance for effortless getaways at busy junctions, traffic lights and hill starts.
Walk Assist	Provides walking pace power assistance should you desire to push your bike.
Free ARCC Control App	Available on iOS and Android devices. Includes all features of IDS Remote Controller. Turn-by-turn map navigation. Ride data. System monitoring. Battery status. Performance insights. System configuration and updates. No subscription or in-app purchases.

IDS Specification
IDS Pod	Manufactured at ARCC, CNC machined from Solid Billets of Peraluman 470 Aluminium Grade 5083/AIMg 4.5Mn, which are polished and anodised for weather protection. Laser engraved legends. Includes 3 USB-C Sockets, one of which has the capacity for fast charging of your phone and IDS Remote Controller on the go.
Battery	4.0Ah Bosch Battery; 144Wh, weight 1.3kg, with a range of up to 30km and a 100% charge time of as little as 35min. 6.0Ah Bosch Battery; 216Wh, weight 1.3kg, with a range of up to 50km and a 100% charge time of as little as 55min (as standard on ARCC Linton)* Range dependant riding style and terrain.
Battery Cover	Neoprene battery cover
Spare battery holder	Optional Extra* (As standard on ARCC Linton)
Gen-3 IDS Remote Control	Manage power levels, modes, switch off pod, control lights, indicators, and monitor IDS and controller battery status with our Gen-3 wireless and weatherproof remote controller. Made by ARCC Bikes in Cambridge from CNC-machined aluminium that has been anodised and laser engraved.
Remote control cradle	Handlebar mounted ergonomically for ease of use, made by ARCC Bikes in Cambridge from CNC-machined aluminium, that has been black anodised and laser engraved
Front hub	Brompton A/C/P/T-Line only: ARCC Aikema 250W 36V Brushless DC Front Hub Motor 28h All bikes: BAFANG 250W 36V Brushless DC Front Hub Motor 36h
Bottom bracket	NCTE Torque and Cadence Sensing Bottom Bracket. Delivers accurate torque and cadence data to the Pod and responds instantly to rider input.
Fork supports	Brompton A/C/P-Line / Moulton: Left and right CNC machined aluminium, black anodised and laser engraved. Brompton G-Line: Left and right CNC machined stainless steel, black finished and laser engraved.
Brake Ferrules	CNC machined aluminium, black anodised & laser engraved (mechanical brakes only)

Bike Specification
Weight	From 10.5kg (for electric see IDS Specification)*
Wheel Size	650B – 27.5"
Fork	ARCC Custom Forks
Frame	4130 Chromoly Steel Tube
Frame Finish	Powder Coat
Headset	1-1/8” Cartridge Headset
Front hub	Shimano 36h black (for electric see IDS Specification)*
Spokes	Stainless 14g x36 Front / x36 Rear
Rims	MACH1 ER20 Double Wall Rim 36h Silver or Black 650D/27.5"
Tyres	Schwalbe 27.5/650B Marathon Plus 95 PSI MAX (Recommended 80 PSI)
Tubes	Schwalbe SV12 27.5/650B Presta Valve
Crank set	1/8/11 Speed: Gates Carbon Drive CDN 55T S250 Square Taper (170mm Arm) 14 Speed: Gates Carbon Drive CDX 70T S250 Square Taper (170mm Arm)*
Bottom bracket	Thun Zumba Square Taper 119mm (for electric see IDS Specification)*
Brake levers	Shimano Mechanical BL-R550L Magura Hydraulic MT4E
Brakes	Shimano Mechanical Disc Brakes: Front: Shimano 160mm Rotor Rear: Shimano 140mm Rotor (Rohloff 160mm Rotor) Magura Hydraulic MT4 Single Pot Disc Brakes: Front: Magura 160mm Rotor Rear: Magura 140mm Rear Rotor (Rohloff 160mm Rotor)
Gear lever	8 Speed: Shimano 8 Speed easy fire shifter* 11 Speed: Shimano 11 Speed easy fire shifter* 14 Speed:Rohloff Twist Shifter*
Cassette/Sprocket	1/8/11 Speed: Gates Carbon Drive CDN 22T Sprocket 14 Speed:Gates Carbon Drive CDX 19T Sprocket*
Belt	8/11 Speed: Gates Carbon Drive CDN 118T Belt 14 Speed:Gates Carbon Drive CDX 125T Belt*
Pedals	VP607 Alloy/Rubber Tread Silver
Seat post	Alloy 27.2mm 400mm Black
Saddle	Madison Roam Brooks C19 Cambium Saddle* Brooks B17 Black Leather Saddle*
Handlebar stem	A-Head Type Stem (6 Degree) Small-Medium: 80mm Medium-Large / Extra Large: 100mm*
Handlebar	Alloy Low Riser 640mm Black
Handlebar Grips	Ergo Grips 130mm
Lighting/Reflectors	Front / Rear Reflectors Lights (IDS only): Front: Lezyne E-Bike Hecto StVZO E65 Rear: Lezyne E-Bike Super Bright StVZO E12*
Seat Post Clamp	Alloy Seat Clamp 34.9mm Black
Frame Size	Small-Medium (160-178cm) Medium-Large (172-188cm)* Extra Large (183-196cm)*
Rear Hub Gearing	Single Speed: Single Speed Shimano (Gear Inches = 65, Meters of Development = 5.2) 8 Speed: Shimano Alfine 8 (Gear Inches = 34-105, Meters of Development = 2.8-8.4)* 11 Speed: Shimano Alfine 11 (Gear Inches = 34-140, Meters of Development = 2.8-11.1)* 14 Speed: Rohloff Speedhub 14 (Gear Inches = 27-141, Meters of Development = 2.1-11.2)*

Size	US	Bust	Waist	Low Hip
XS	2	32	24 - 25	33 - 34
S	4	26 - 27	34 - 35	35 - 26
M	6	28 - 29	36 - 37	38 - 40
L	8	30 - 31	38 - 29	42 - 44
XL	10	32 - 33	40 - 41	45 - 47
XXL	12	34 - 35	42 - 43	48 - 50

ARCC Abington Electric Configurator

Single Speed Shimano

8 Speed Shimano Alfine

11 Speed Shimano Alfine

14 Speed Rohloff Speedhub

Small-Medium (160-178cm)

Medium-Large (172-188cm)

Extra Large (183-196cm)

4AH

6AH

4AH

6AH

Spare Battery Holder

Lockable Spare Battery Holder

IDS mk2 Pod Lock

SKS Full 27.5/650B (Silver)

SKS Full 27.5/650B (Black)

Rear Rack Uncoated Stainless Steel

Rear Rack Jet Black

ARCC Heavy Duty Rear Rack

Bike Kickstand

Brooks B17 Leather Saddle
